225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)

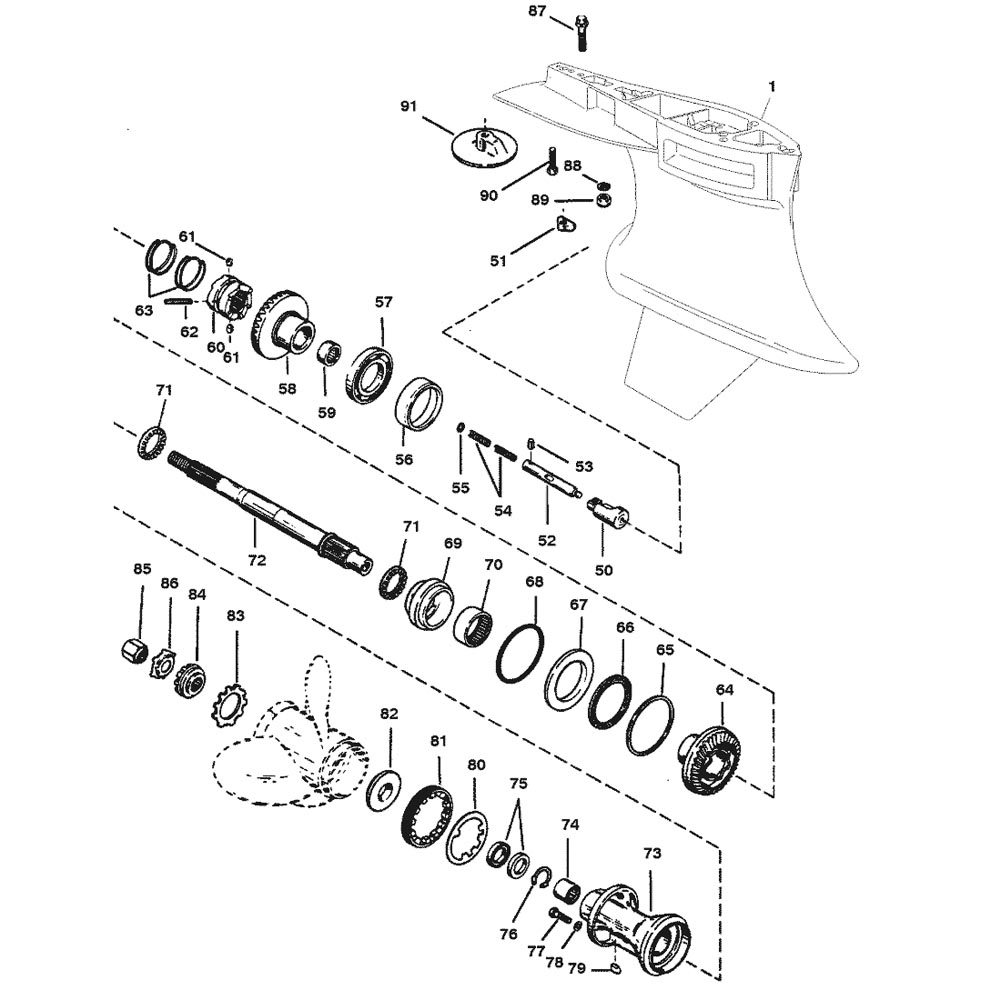

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: The Basic Gear Housing Listed is Geberic. It Does Not Include Studs.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0084203         GEAR HOUSING (BASIC) 1 848474A39
66 31-15841         ROLLER BEARING 1
67 12-17616         THRUST RING 1
68 25-31534         O RING 1
69 15838A2         BEARING ADAPTOR 1
70 31-15843T         ROLLER BEARING 1 15843
71 31-15834         THRUST BEARING 2
72 44-815495T         PROPELLER SHAFT 1 No Longer Available
73 847616T1         BEARING CARRIER 1 847616A1
74 31-817072         ROLLER BEARING 1
75 26-815565         OIL SEAL 2
76 53-817071         SNAP RING 1
77 22-8M0058389         MAGNETIC DRAIN SCREW 1 67892A1
78 12-191833         SEALING WASHER 1 19183
79 28-30281         KEY 1
80 14-79447         TAB WASHER 1
81 158401         COVER 1
82 13171T1         THRUST HUB 1 131711 No Longer Available
83 13-423511         LOCKWASHER 1
84 12-31211Q03         WASHER 1 31211A2
85 11-52707Q1         PROPELLER NUT 1 52707A1
86 14-816629Q         TAB WASHER 1 816629
87 10-41350         SCREW (SHORT) 1
87 10-66024         SCREW (LONG/X-LONG) 1
88 12-822836         WASHER 2
89 11-859116         NUT 2 134391
90 10-30206         SCREW (SHORT/LONG) 1
90 10-15929         SCREW (X-LONG) 1 No Longer Available
91 76214T3         ANODIC PLATE (SHORT) 1 762143
91 76214Q5         ANODIC PLATE (LONG) 1 76214A5
91 76214T1         ANODIC PLATE (X-LONG) 1 762141
- 26-89238A3         SEAL KIT 1
- 56-90415A24         STUD KIT (LONG) 1 No Longer Available
- 56-90415A25         STUD KIT (X-LONG) 1 No Longer Available
