225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Exhaust Divider And Exhaust Plate

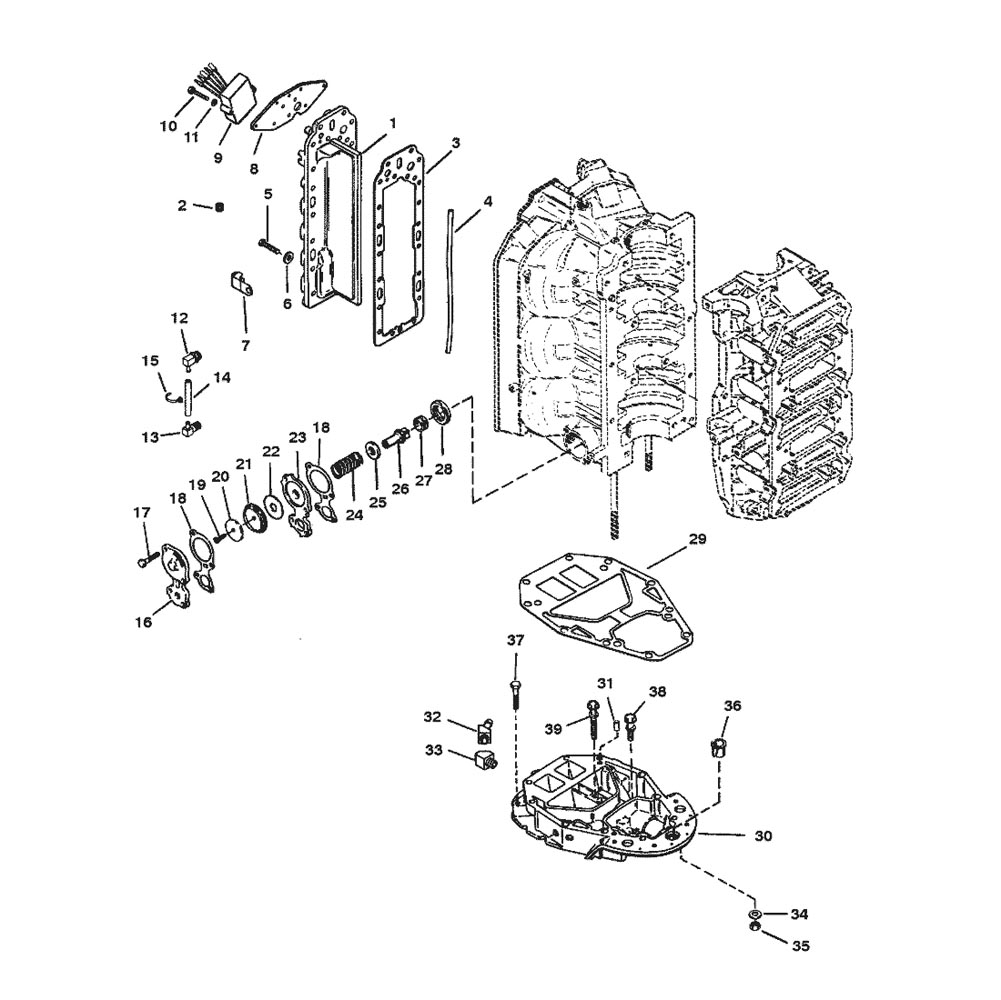

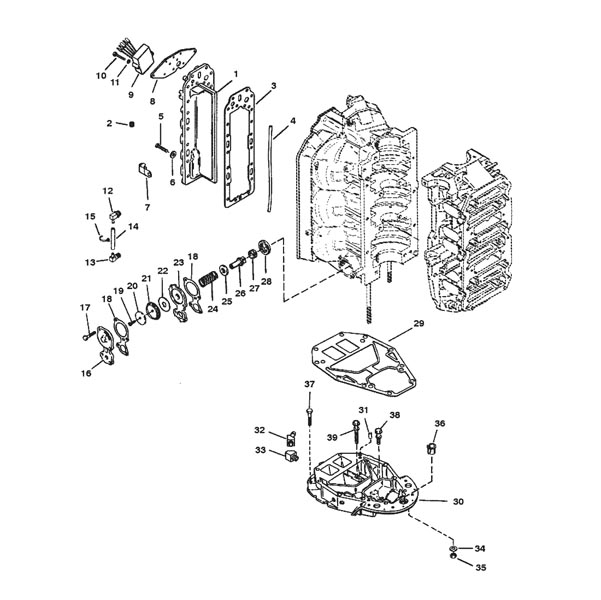

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 815552T1         EXHAUST DIVIDER PLATE 1 815552A1
2 22-328022         PIPE PLUG 1 328021
3 27-847525004         GASKET 1 8475251
4 26-814754         SEAL 1
5 10-848496         SCREW (1-1/2 IN.) 18 847538
5 10-848497         SCREW (1 IN.) 2
6 12-847526         WASHER (USE WHERE APPLICABLE) 20
7 54-814634         J-CLAMP (LARGE) AR
7 54-642352         J-CLAMP (SMALL) 1
8 8478951         REGULATOR PLATE 1
9 8M0084173         VOLTAGE REGULATOR 1 815279T
10 10-69697         SCREW 4 No Longer Available
11 11-826709109         NUT 4 35045
12 22-8144301         FITTING 1 814430
13 22-920071         FITTING (90 DEGREES) 1 92007
14 32-8M0108355         HOSE (23-1/2 IN.) 1 830756109
15 54-816311T         STA-STRAP 2 816311
16 8M0039767         COVER-RELIEF VALVE 1 68729
17 10-74824         SCREW (1-1/4 IN.) 4
18 27-78690002         GASKET 2 78690
19 10-69570         SCREW (3/4 IN.) 1
20 12-76451         WASHER 1
21 144791         DIAPHRAGM 1 14479
22 16496         WATER DEFLECTOR 1
23 16497A1         PLATE 1
24 24-64878         SPRING 1
25 12-85303         WASHER 1
26 14480         POPPET 1
27 25-64872         GROMMET 1
28 65848         CARRIER 1
29 27-8231422         GASKET 2
30 18260T5         EXHAUST PLATE 1 18260A5
31 17-8M0043826         DOWEL PIN 2 823106
32 22-14867         ELBOW (45 DEGREES) 1
33 22-8M0109010         ELBOW (45 DEGREES) 1 29085
34 12-822838         WASHER 6
35 11-46335         NUT 6
36 23-27132         BUSHING 1
37 10-898833         SCREW (3-1/2 IN.) 3 66725
38 10-66727         SCREW (1-1/4 IN.) 1
39 10-68783         SCREW (2-1/2 IN.) 1
- 27-813859A95         GASKET SET 1
- 809430T01         POWERHEAD 1 809430A95
