225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Reed Block And Cylinder Head

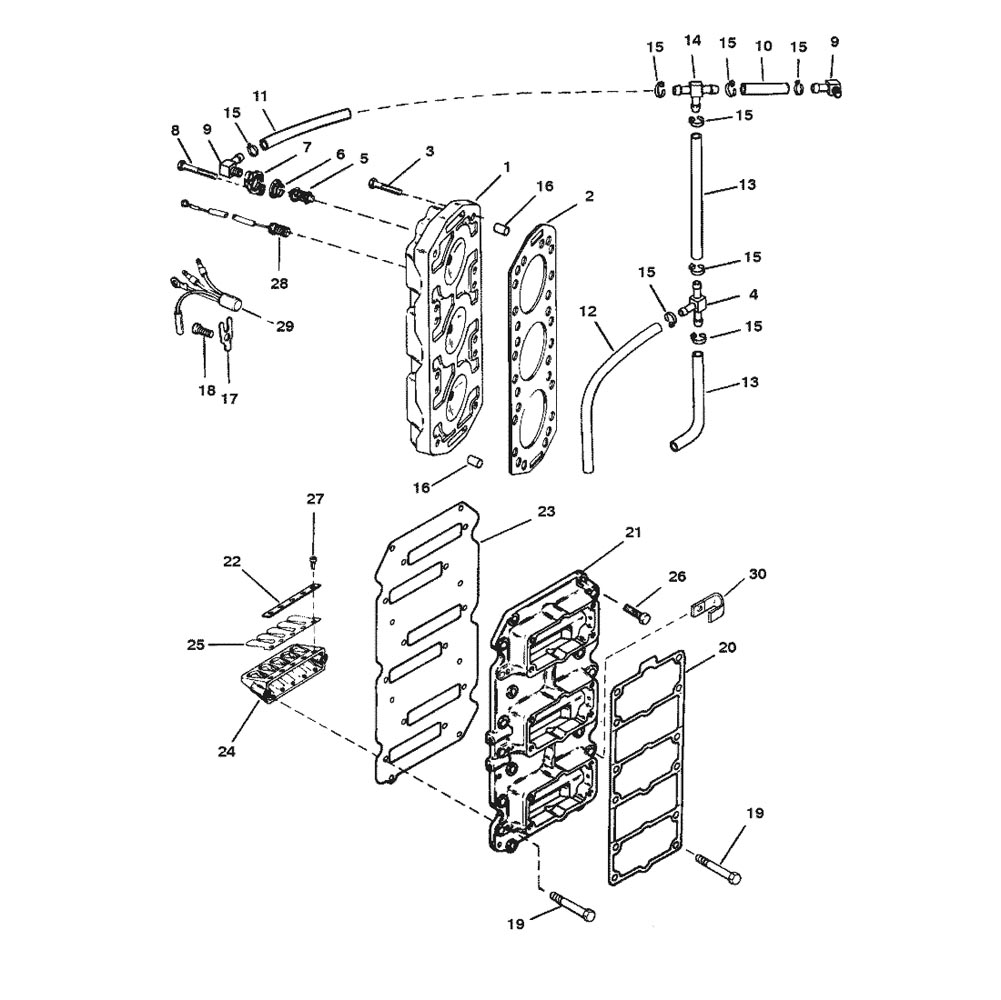

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18789F1         CYLINDER HEAD 2
2 27-8146581         GASKET 2
3 10-98534         SCREW-CYLINDER HEAD (2 IN.) 24
4 22-815914         T-FITTING 1
5 75692         THERMOSTAT 2
6 27-62386001         GASKET-THERMOSTAT 2 62386
7 90390A1         COVER-THERMOSTAT 2
8 10-35386         SCREW-THERMOSTAT COVER (1 IN.) 4
9 22-136071         FITTING-ELBOW - WATER HOSES 2 13607
10 32-8M0108349         HOSE (2-1/2 IN. 1 83075780
11 32-77653101         HOSE (10-1/2 IN.) 1 7765377
12 32-77653101         HOSE (14-1/2 IN.) 1 7765377
13 32-8M0108349         HOSE (7-1/2 IN.) 2 83075780
14 22-90824001         TEE FITTING 1 90824
15 54-816311T         STA-STRAP-WATER HOSES AR 816311
16 17-63779         DOWEL PIN 4
17 137151         RETAINER-SENSOR AND SENDER 2
18 10-98257         SCREW-RETAINER 2
19 10-28668   676-9-78127 700-22440   SCREW (7/8 IN.) 12
20 27-167371         GASKET-ADAPTOR PLATE 1
21 12124A3         ADAPTOR PLATE 1
22 903911         REED CLAMP 12
23 27-883775         GASKET 1 813859
24 87692T3         REED BLOCK 6 876922
25 34-815242A3         REED ASSEMBLY 6
26 10-28668   676-9-78127 700-22440   SCREW-ADAPTOR PLATE 8
27 10-823588         SCREW-REEDS TO REED BLOCK 84
28 97465         TEMPERATURE SENDER 1
29 13536A6         TEMPERATURE SENSOR 1
30 54-55098         J-CLAMP 1
- 27-813859A95         GASKET SET 1
- 809430T01         POWERHEAD 1 809430A95
