225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Trim Solenoid Plate (S/N-0G205073 & Below)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid

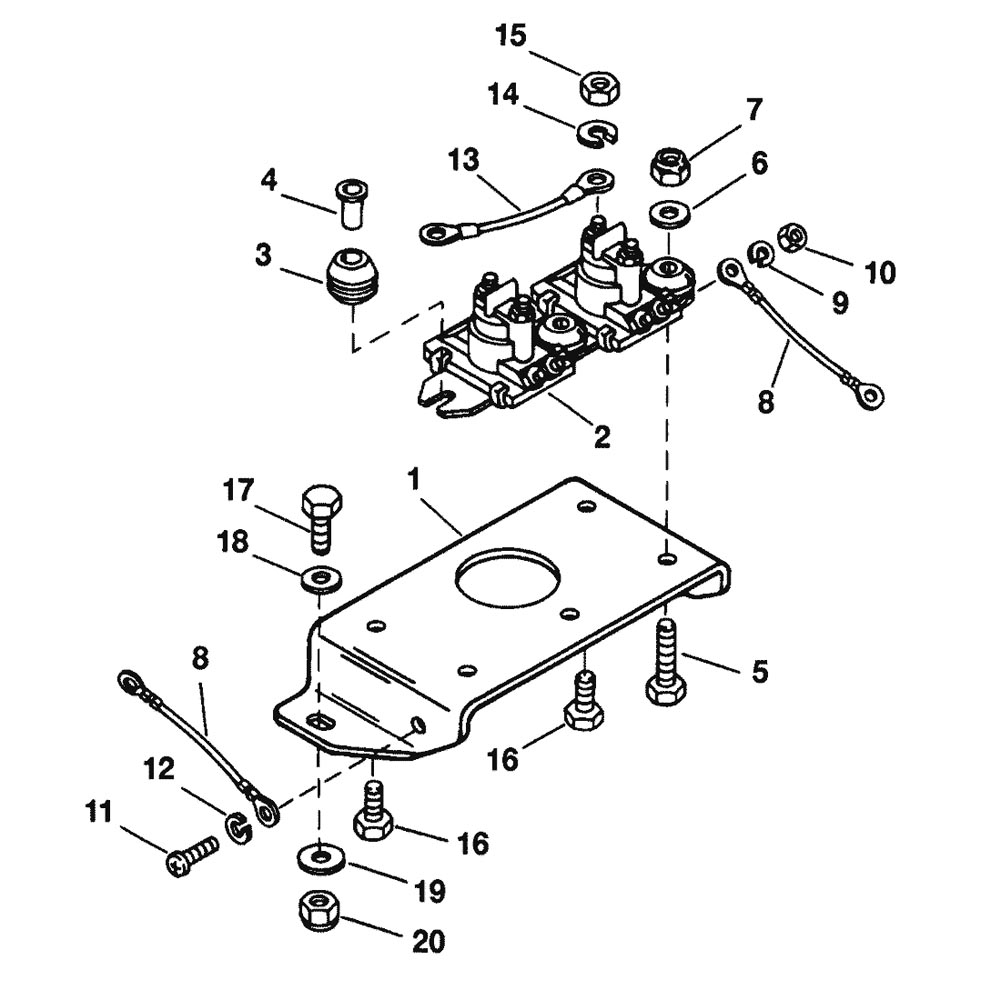

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 8M0053740 | PLATE | 1 | 847896 | |||||
2 | 89-818997T1 | TRIM SOLENOID | 2 | 818997A1 | |||||
3 | 25-818967 | GROMMET | 4 | ||||||
4 | 23-818968 | BUSHING | 4 | ||||||
5 | 10-455611 | SCREW | 3 | 45561 | |||||
6 | 12-35950 | WASHER | 3 | ||||||
7 | 11-814101 | NUT | 3 | ||||||
8 | 84-88807A6 | CABLE | 2 | ||||||
9 | 13-26995 | LOCKWASHER | 4 | ||||||
10 | 11-26419 | NUT | 4 | ||||||
11 | 10-42813 | SCREW (10-32 X .3/8 IN.) | 2 | ||||||
12 | 13-26996 | LOCKWASHER | 2 | ||||||
13 | 84-87379A14 | CABLE (RED) | 1 | No Longer Available | |||||
14 | 13-26992 | LOCKWASHER | 4 | ||||||
15 | 11-94330 | NUT (BRASS) | 2 | ||||||
16 | 10-73286 | SCREW (1/4-20 X 1/2 IN.) | 2 | ||||||
17 | 10-69028 | SCREW (1/4-28 X 3/4 IN.) | 2 | ||||||
18 | 12-35462 | WASHER | 2 | ||||||
19 | 12-35280 | WASHER | 2 | ||||||
20 | 11-826709109 | NUT | 2 | 35045 |
