225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Swivel Bracket And Steering Arm

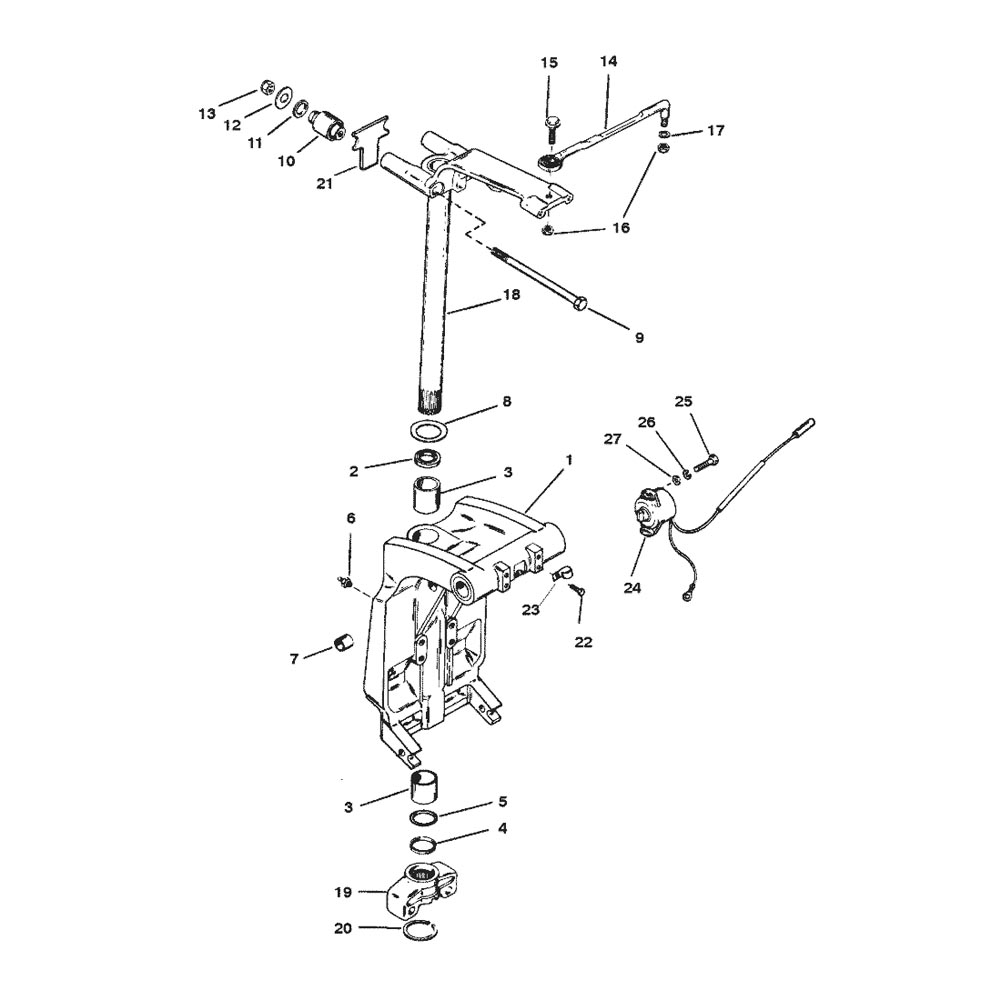

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1499-8M0102865         SWIVEL BRACKET ASSEMBLY 1 8710A20
1 1499-8710T21         SWIVEL BRACKET ASSEMBLY 1 8710A21 No Longer Available
2 26-87735         OIL SEAL (LOWER) 1
3 23-818764         BUSHING 2
4 23-816039         SPACER 1
5 25-33504         O-RING 1
6 22-74036         GREASE FITTING 2
7 23-821207         BUSHING 2
8 12-816432         THRUST WASHER 1
9 10-8M0000491         SCREW 2 78689
10 776981         MOUNT 2
11 12-66921         WASHER 2
12 12-78688         WASHER 2 814432
13 11-34933         NUT 2
14 92876A12         STEERING LINK ASSEMBLY 1 92876A1
15 10-849838         SCREW 1 14000
16 11-826709113         NUT 2 34863
17 12-34931         WASHER 2
18 17-67706A55         SWIVEL PIN AND STEERING ARM 1 No Longer Available
18 17-67706A55         SWIVEL PIN AND STEERING ARM 1 67706A56 No Longer Available
19 86580A1         BOTTOM YOKE 1 No Longer Available
19 86580A1         BOTTOM YOKE 1 86580A2 No Longer Available
20 53-67684         RETAINING RING 1
21 8M0000516         BUMPER (USE WHERE APPLICABLE) 1 888821
22 10-64014         SCREW 2
23 54-54457         J CLAMP 1
25 10-852368         SCREW 2 56682
26 13-26996         LOCKWASHER 2
27 12-89302         WASHER 2
